Air Curtain 1 Meter | Metal Body (Premium Series)
₹17,490.00 ₹24,499.00
1 Meter (1.0 m) aluminium-body air curtain for showrooms, clinics, mall entrances, mid-tier doors. Single-phase 220 V, 200 W 2-motor copper-wound, 1,500 CFM peak airflow — A continuous 1,500 CFM air barrier across a 1.0 m door.
- 💨 1,500 CFM high · 1,100 CFM low · jet reach ~3.1 m
- ⚡ 200 W · 220 V single-phase · 2 motors / 3 blowers
- 🛡️ Aluminium body · ≤60 dB · ~14.0 kg · HSN 8414 59 10
- 📍 ISO 9001:2015 Noida · 12-month warranty · pan-India dispatch
📖 Read full specs, install guide & buyer FAQ ↓
❓ Frequently Asked Questions
SKU:PCX-1-METER-P-200 WATTS-2 MOTOR 3 BLOWERS-1500 CFM (H), 1100 CFM (L)-220 V; SINGLE PHASE, 50 HZ-1-Meter-PREMIUM
Categories:Metal Body Air Curtains
🔍 At a Glance
1 Meter • 200 W • 1,500 CFM high / 1,100 CFM low • 2-motor 3-blower • ≤ 60 dB • 14.0 kg • IR sensor + wireless remote
⚙️ Specifications

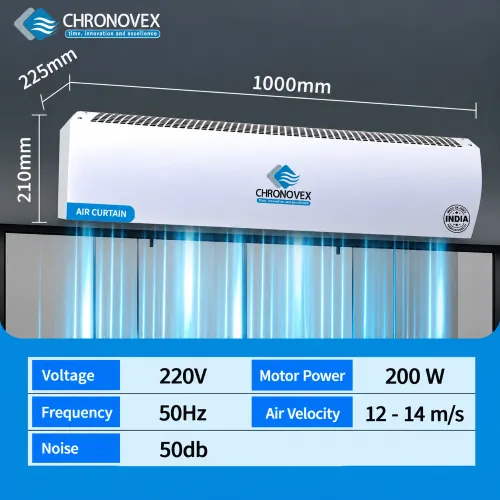

| Door width | 1 Meter (1.0 m) | Mount height | 2.2 – 2.7 m |
| Motor power | 200 W (2 × copper-wound induction motors) | Blowers | 3 cross-flow |
| Airflow (High) | 1,500 CFM | Airflow (Low) | 1,100 CFM |
| Air velocity | 12 – 14 m/s | Voltage | 220 V · single-phase · 50 Hz |
| Body | Powder-coated aluminium | Noise | ≤60 dB |
| Weight | ~14.0 kg | HSN | 8414 59 10 |
✨ Key Features
- 🔇 Quiet at the counter — ≤ 60 dB on low speed. Conversations under the unit stay normal.
- 🛡️ 1.0 mm CRCA steel body — powder-coat white. Takes daily knocks from trolleys, pallets, cleaning carts.
- ⚡ Copper-wound motors — 2 × induction motor with thermal cut-out. 12-month warranty.
- 👁️ IR auto-on sensor — runs only when door opens. Cuts run-hours 60–80% vs always-on.
- 📶 Wireless remote + 2-speed — staff toggle High/Low without climbing a ladder.
- 🎯 3.1 m jet reach — seals the full 1.0 m door from floor to header.
📦 In the Box
- 1 × Air Curtain 1m Aluminium Metal Body Premium Series Series
- Mounting bracket kit + screws + wall plugs
- User manual + 12-month warranty card
- Chronovex GST invoice (B2B claim eligible)
📍 Who Should Buy This?
- 🏬 Retail & mall entrances — doors with 300+ cycles/day. Steel body survives trolley traffic.
- 🏥 Clinics & diagnostic centres — quiet enough for reception, durable for high foot-traffic.
- 🍽️ Restaurants & QSR — kitchen smoke control + AC retention. Powder-coat handles grease cleaning.
- 🏢 Corporate lobbies — main door air seal. White finish matches any glass-front interior.
- 🏫 Schools & coaching institutes — main entrance dust + insect control.
🛠️ Installation Notes
- Mount horizontally above the door frame, height 2.2–2.7 m (lower = stronger barrier).
- Air jet should point slightly outward (5–10°) to deflect incoming flies/dust.
- Plug into a dedicated 5 A / 220 V outlet — no rewiring needed.
- Test high mode first (1,500 CFM), then low mode for off-peak hours.
- Clean filter grille every 30 days (dust load varies by location).
❓ Quick FAQ
Q. Will this fit my 1.0 m door?
Yes — designed for doors up to 1.0 m wide. For wider, step up one size in the Metal Premium ladder, or look at Metal Advanced.
Q. How loud is it really?
Low speed: ≤ 60 dB at 2 m — quieter than office AC. High speed: ~65 dB.
Q. Steel body vs aluminium — which lasts longer?
Steel powder-coat is more dent-resistant for high-traffic. Aluminium is lighter and has a brushed look for upscale showrooms. Mall doors, factory canteens, hospital lobbies: pick steel.
Q. Is the warranty different?
12 months on motor + electricals, same as aluminium. Spares stocked in Noida for same-day pan-India dispatch.
📊 Compare — Metal Body Premium 1 Meter vs Aluminium Premium vs Standard
| Spec | Metal Premium 1 Meter | Aluminium Premium 1 Meter | Standard 1 Meter |
|---|---|---|---|
| Body material | 1.0 mm CRCA steel, powder-coat | Die-cast aluminium, brushed | 0.8 mm CRCA steel, powder-coat |
| Motor | 2 × copper-wound, thermal-protected | 2 × copper-wound, thermal-protected | 2 × copper-wound, basic |
| Air volume (high) | 1,500 CFM | 1,500 CFM | 1,100 CFM |
| Noise (low) | ≤ 60 dB | ≤ 59 dB | ≤ 62 dB |
| IR auto-on sensor | ✅ Included | ✅ Included | ❌ Not included |
| Wireless remote | ✅ 2-speed | ✅ 2-speed | ❌ Manual switch |
| Finish | Powder-coat white | Brushed aluminium | Powder-coat white |
| Best for | Mall doors, clinics, restaurants | Showrooms, salons, boutique retail | Backrooms, warehouses |
🛡️ Why Chronovex?
- ISO 9001:2015 certified manufacturing — Noida, U.P.
- 12-month replacement warranty on motor + blower assembly.
- Pan-India dispatch — typical lead time 3-5 working days.
- GST invoice — full ITC claim eligible for B2B buyers.
- Direct factory support — no dealer markup, WhatsApp +91 99977 78202.
📖 Product Overview & Buyer Guide
The Chronovex 1 Meter Metal Body Premium Air Curtain is built for B2B buyers who want a heavier, more durable shell than the aluminium series — without going up to industrial stainless steel. The 1.0 mm CRCA powder-coat white body resists day-to-day knocks, the 2-motor copper-wound setup keeps noise under 60 dB on low speed, and the IR sensor saves power by running only when the door opens. Ideal for buyers in Delhi NCR, Mumbai, Bengaluru, Hyderabad, Chennai, Pune, Kolkata and Ahmedabad who want a curtain that takes daily use — mall entrances, showroom doors, clinic receptions, restaurant fronts — and still looks clean five years in.
🏅 Manufacturing & Quality
Chronovex Industries Pvt. Ltd. manufactures every air curtain at our ISO 9001:2015 certified facility in Noida, Uttar Pradesh. Each 1m Aluminium Metal Body Premium Series unit passes 12 QC checkpoints — motor balancing, blower alignment, voltage stability (200–240 V tolerance), thermal cut-off testing, noise level (≤60 dB at 1 m), and a full 30-minute run-test before packaging.
⚙️ Why buyers pick the Metal Body Premium 1 Meter over Aluminium
Three reasons keep showing up in our B2B procurement calls. First, the powder-coat steel body survives forklift bumps, cleaning trolleys, and pallet corners that brushed aluminium would scratch. Second, the 2-motor copper-wound layout is service-friendly: spares are interchangeable across the steel-series ladder so your facility team stocks one set of blower wheels. Third, the white powder-coat finish stays neutral against any wall colour — unlike brushed aluminium which clashes with warm interiors. For mall doors, hospital lobbies, factory canteens — 200+ open-close cycles per day — Metal Body Premium pays for itself in not needing a re-paint or replacement at year three.
🚚 Logistics, Warranty & Support
| Lead time | 3–5 working days (pan-India surface freight) |
| Packaging | Double-wall corrugated carton + EPE foam, transit-rated |
| Warranty | 12 months replacement on motor + blower assembly |
| Invoice | GST tax invoice with full ITC eligibility |
| Bulk pricing | Volume discount on 10+ units (contact for B2B rate card) |
❓ Frequently Asked Questions
✉️ Email: sales@chronovex.in
📍 Factory: Noida, U.P. — ISO 9001:2015
