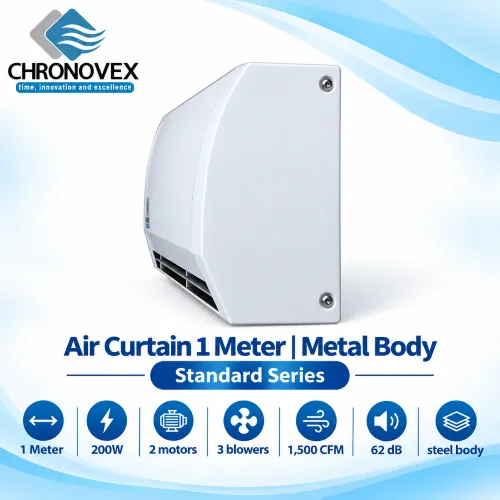

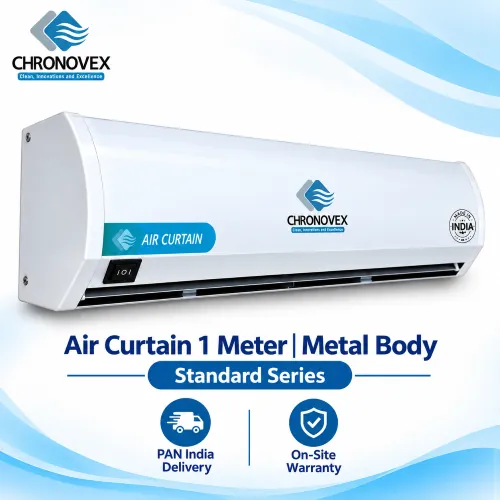

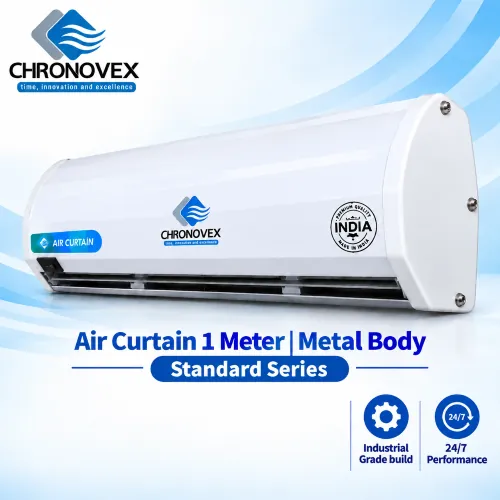

Air Curtain 1 Meter | Metal Body (Standard Series)

₹14,299 / piece ₹24,239

1 Meter (1.0 m) metal-body air curtain for shops, offices, clinics, salons, small retail. Single-phase 220 V, 200 W 2× Indian copper motors with thermal cut-off, 1,500 CFM peak airflow — Entry-level barrier for 1m chemist, cafe and small showroom entrances.

  • 💨 1,500 CFM high · 1,100 CFM low · air throw up to 3 m (10 ft)
  • ⚡ 200 W · 220 V single-phase · 2 motors / 3 blowers
  • 🛡️ Metal body · 50 dB · 16 kg · HSN 8414 59 10
  • 📍 ISO 9001:2015 Noida · 1-year warranty · pan-India dispatch

📖 Read full specs, install guide & buyer FAQ ↓

❓ Frequently Asked Questions

How long does installation take for the 1 meter Metal Standard air curtain?
A two-person team usually completes a standard above-door installation in a few hours: fixing the wall brackets above the door, connecting a 220 V single-phase supply through an MCB, and checking both speeds. The unit weighs about 16 kg, so fix it into a solid wall or lintel. Mount it at a height of up to 3 m (10 ft). Step-by-step guides are on our Installation Guides page.
How much power does the 1 meter Metal Standard air curtain use and what does it cost to run?
It draws 200 W on high speed on a normal 220 V single-phase supply. At Rs 8 per unit (kWh), that is about Rs 1.60 per hour on high speed, and less on low speed. Power and airflow are the same across Standard, Premium and Advanced for a given size.
What warranty comes with the 1 meter Metal Standard air curtain?
The Standard series comes with 1 year onsite parts cover from the invoice date. For service, WhatsApp or call +91 99977-78202 with your invoice number. You can also register your product on our website.
Who should choose the Standard series?
The Standard series is built for shops, offices, clinics and showrooms. It is rated for regular daily use of up to 10-12 hours a day, with an expected motor life of 3-5 years. It uses a pure copper winding motor, ball bearings that need no oiling and a standard finish. Airflow (up to 23 m/s), throw and power are the same in every series for a given size; the difference is running duty, motor life, build quality and warranty.
Why choose the Metal body?
The metal (steel) body is sturdy and the most economical choice for dry indoor doorways. All three bodies (Aluminium, Metal and SS304) are available in Standard, Premium and Advanced series.
Is it noisy?
The 1 meter Metal model runs at about 50 dB on high speed, similar to normal conversation. Low speed is quieter.
Can it be installed outdoors?
It is made for mounting indoors, above the inside of a doorway. For semi-open doorways, mount it where it is protected from direct rain. SS304 is the best choice for wet or coastal locations.
How much can it save on AC bills?

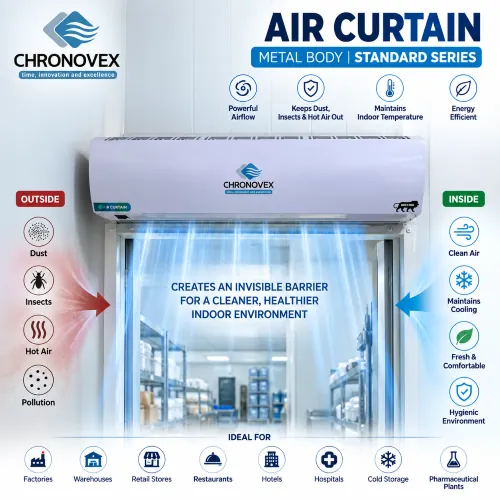

An air curtain keeps cooled air inside when the door is open, so the AC works less. Savings depend on door size, how often the door opens and your AC load. Use our Air Curtain Calculator to find the right size for your door, or WhatsApp us for an estimate.
What is the HSN code and GST rate?
HSN code 8414 59 10, GST 18%. Every order comes with a GST invoice, so registered businesses can claim input tax credit.
Standard kit selected (recommended)Change thickness / quality ▾
Series:
Door Width:
(Available)
Estimated delivery: Nov 25 - Nov 29
✔ ISO 9001:2015 certified✔ GST invoice (ITC)✔ Warranty card with every unit✔ Manufacturing since 2009
Supplied to: Aditya Birla Fashion & Retail · Parle Biscuits · Indo Nissin Foods · Encalm Hospitality · Regal Remedies · Maharaja Agrasen Hospital + 14 more
Quantity
✅ GST Invoice  ·  ✅ ISO 9001:2015  ·  ✅ Manufacturer Warranty  ·  ✅ Pan-India Delivery  ·  ⭐ 4.9/5 (47 Google reviews)  ·  Since 2009

Get a Callback / Quote on WhatsApp

We will message you on WhatsApp with pricing and availability.
Warranty & service
Already purchased? Register your unit Get your warranty activated within 24 hrs — Hinglish helpline available.
Register Now

SKU: PCX-1-METER-S-200 WATTS-2 MOTOR 3 BLOWERS-1500 CFM (H), 1100 CFM (L)-220 V; SINGLE PHASE, 50 HZ-1-Meter-STANDARD

Categories: Metal Body Air Curtains

Standard vs Premium vs Advanced — what actually differs

For a given size, all three deliver the same airflow, wattage and CFM. The difference is not the specification — it is the grade of the components behind it. A 100% copper motor can be sourced at very different price points; the rating stays the same while life, durability and support do not. That grade is what separates these three series, and the onsite warranty reflects it.

StandardPremiumAdvanced
Best suited forShops, offices, clinics, showroomsHotels, malls, hospitals, banksFactories, warehouses, cold storage, food & pharma plants
Running dutyRegular daily use (up to 10–12 hrs/day)Extended daily use (up to 16–18 hrs/day)24×7 continuous, tested
Expected motor life3–5 years8–10 years15–20 years
MotorPure copper windingHigher-grade pure copper windingIndustrial-grade long-life copper motor
BearingBall bearing, no oilingHigh-quality sealed ball bearingHeavy-duty sealed ball bearing
Body finishStandard finishPremium finish, heavier coatingIndustrial-grade body & finish
Airflow, velocity & powerSame for a given size (up to 23 m/s)SameSame
Onsite parts warranty1 year3 years5 years
Free onsite service—1 year1 year

All series: squirrel-cage induction motor, 5-inch centrifugal blower, 2,800 RPM, dual-speed switch, adjustable louver, covers doors up to 10 ft (3 m) high. Same airflow and velocity in every series — you pay more for longer running life, better components and longer onsite cover.

Not sure which series you need? Answer 2 questions

How many hours a day will it run?
Where will it be installed?

Is the 1 m (3.3 ft) Metal Standard air curtain right for your door?

This model covers doors wider than 3 ft and up to 1 m (3.3 ft) wide. The air curtain should be at least as long as the door opening, so the air stream covers the full width. It is typically used on standard single doors: small shops, offices, clinics, pharmacies and restaurant kitchen doors. If your door is wider than 1 m (3.3 ft), choose the 4 ft model. Doors wider than 7 ft use two or more units side by side; the door size price finder works out the exact combination.

The powder-coated metal body is sturdy and economical, suited to shops, offices and general commercial doors. Price for this model: ₹14,299, GST and installation included. The final quote is confirmed on WhatsApp after we see a photo of your door.

Metal Standard series: all sizes

SizeDoor widthPrice (GST + installation)
2 ftup to 2 ft₹12,649
3 ft> 2 ft to 3 ft₹13,749
1 m (3.3 ft) (this model)> 3 ft to 1 m (3.3 ft)₹14,299
4 ft> 1 m (3.3 ft) to 4 ft₹15,949
5 ft> 4 ft to 5 ft₹19,799
6 ft> 5 ft to 6 ft₹21,449
7 ft> 6 ft to 7 ft₹24,749

Other 1 m (3.3 ft) options

Quick answers for the 1 m (3.3 ft) model

Which door width does a 1 m (3.3 ft) air curtain suit?
Doors wider than 3 ft and up to 1 m (3.3 ft) wide. For a wider door, go to 4 ft.

Is installation included in the ₹14,299 price?
Yes. The price includes GST and standard installation. Send your door photo on WhatsApp to confirm the final quote.

When should I choose the Metal body?
The powder-coated metal body is sturdy and economical, suited to shops, offices and general commercial doors. For food, pharma or wet areas, see the 1 m (3.3 ft) SS304 Standard (₹24,639).

Enter your door size - get the right air curtain and exact price
Air CurtainMagnetic PVC (AC room)PVC Strip Curtain

Prices live from our catalogue, GST-inclusive. Final quote is confirmed on WhatsApp after a door photo.

Product videos

Air curtain installation - step by stepAir curtain installation - step by step
Benefits of an air curtainBenefits of an air curtain
Chronovex air curtains, insect killers and PVC curtainsChronovex air curtains, insect killers and PVC curtains

The 1 m Metal Standard matches standard 1 m (3.3 ft) door frames, common in offices, salons and cafes. It uses the same 2-motor, 3-blower set-up as the 3 ft model (1,500 CFM at up to 23 m/s) in a slightly longer housing, so the air stream covers the full 1 m opening.

1 m Metal Standard at a glance

Door widthup to 1 m (3.3 ft)
Model no.PCX100
Dimensions1000 × 210 × 225 mm
Motors / blowers2 copper motors, 3 cross-flow blowers
Power200 W
Airflow (High / Low)1,500 / 1,100 CFM
Air velocityup to 23 m/s
Noise50 dB
Mountingup to 3 m (10 ft)
Weight16 kg
Supply220 V, single-phase, 50 Hz
HSN8414 59 10

Where the 1 m model is used

Standard 1 m doors in offices, salons and beauty parlours, cafes and small showrooms.

1 m vs the sizes next to it

3 ft1 m (this model)4 ft
Door widthup to 3 ft (0.9 m)up to 1 m (3.3 ft)up to 4 ft (1.2 m)
Airflow1,500 CFM1,500 CFM2,000 CFM
Motors / blowers2 / 32 / 32 / 4
Power200 W200 W240 W
Noise50 dB50 dB50 dB

Metal Standard series: included with every size

Powder-coated steel body, High/Low 2-speed wall switch, Indian copper motors with thermal cut-off, mounting brackets and screws, user manual, 1-year replacement warranty on the motor and blower assembly, and a GST tax invoice with full ITC eligibility. Dispatch in 3–5 working days, packed in a double-wall carton with foam. Volume pricing on 10+ units.

1 m air curtain: common questions

Will a 1 m air curtain cover a 1 m door?
Yes. It matches the door width, and the 1,500 CFM stream covers the full opening when mounted at up to 3 m (10 ft).

How much power does the 1 m model use?
200 W on High speed, on a normal 220 V single-phase supply.

My door is a little wider than 1 m. What should I choose?
Go one size up to the 4 ft model (2,000 CFM).


Model Name
Size
Volt 220 V; Single Phase, 50 Hz
Air Volume
Assembly
Power Watts
Air Velocity 18-23 m/s
Noise Level dB
Height Covered 10 Feet
# of Blower
Motor HP
Shaft
Phase
CMH
Maintainance
Core Components
Key Selling Points
Application
Sensor/Door Switch
Flow Type
Blower Diameter
Front Chasis
Suction Grills
Mounting
Motor Type
Motor Power
Weight
CFM
Outer Look
% Insect/Dust Rejection
Color
After Warranty Service
After-Sales Service
Dimension
RPM
Motor Winding
Operation
Fan Type
Voltage
Main & Back Plate
Blower
Material Flexible Transparent Magnetic PVC
Thickness 2 mm
Width per Strip 400 mm
Length Customizable as per door height
Magnetic Closure Built-in magnets along the edges
Operating Temperature -10°C to +50°C
Transparency High clarity
Mounting Type Wall mount / Top mount
Roll Length 30 meters
Surface Smooth and Clear
Application Type DIY Strip Curtains, Industrial Usage
Packaging Roll Packed, Secured
Warranty Duration
Shipping Weight
Shipping Dimensions
Lead Time
Installation Requirements
Compatibility Information
Dimensions (Length x Width x Height)
Energy Consumption (Monthly)

Frequently Asked Questions

Find answers to common questions about this product

A two-person team usually completes a standard above-door installation in a few hours: fixing the wall brackets above the door, connecting a 220 V single-phase supply through an MCB, and checking both speeds. The unit weighs about 16 kg, so fix it into a solid wall or lintel. Mount it at a height of up to 3 m (10 ft). Step-by-step guides are on our Installation Guides page.

It draws 200 W on high speed on a normal 220 V single-phase supply. At Rs 8 per unit (kWh), that is about Rs 1.60 per hour on high speed, and less on low speed. Power and airflow are the same across Standard, Premium and Advanced for a given size.

The Standard series comes with 1 year onsite parts cover from the invoice date. For service, WhatsApp or call +91 99977-78202 with your invoice number. You can also register your product on our website.

The Standard series is built for shops, offices, clinics and showrooms. It is rated for regular daily use of up to 10-12 hours a day, with an expected motor life of 3-5 years. It uses a pure copper winding motor, ball bearings that need no oiling and a standard finish. Airflow (up to 23 m/s), throw and power are the same in every series for a given size; the difference is running duty, motor life, build quality and warranty.

The metal (steel) body is sturdy and the most economical choice for dry indoor doorways. All three bodies (Aluminium, Metal and SS304) are available in Standard, Premium and Advanced series.

The 1 meter Metal model runs at about 50 dB on high speed, similar to normal conversation. Low speed is quieter.

It is made for mounting indoors, above the inside of a doorway. For semi-open doorways, mount it where it is protected from direct rain. SS304 is the best choice for wet or coastal locations.

An air curtain keeps cooled air inside when the door is open, so the AC works less. Savings depend on door size, how often the door opens and your AC load. Use our Air Curtain Calculator to find the right size for your door, or WhatsApp us for an estimate.

HSN code 8414 59 10, GST 18%. Every order comes with a GST invoice, so registered businesses can claim input tax credit.
