Magnetic PVC Strip Curtain | Self-Closing Industrial Curtain | Chronovex
₹290.00 ₹413.00
Magnetic auto-close door curtain kit — strips + rail + hardware, zero-leak AC + cold-room solution.
- ✨ Magnetic-edge PVC strips (auto self-close)
- 📏 SS304 hanger rail (door-width matched)
- 🏭 Best for — clinic OPDs, AC offices, cold rooms, pharmacy entrances, sterile zones.
- 🧾 HSN 3920 49 00 + GST invoice — ITC-claim valid for B2B buyers.
✅ Full specs, sizing chart & installation guide →
❓ Frequently Asked Questions
Are Chronovex PVC strip curtains food-grade?
Yes — the standard rolls comply with BIS IS 10146 (specification for PVC in contact with foodstuffs). Polar-grade rolls for cold storage are dosed for flexibility at −25°C.
What thickness should I order for cold storage vs. a loading dock?
For freezer rooms (−18°C and below) use 3 mm polar-grade strips with 50% overlap. For chiller rooms (0°C to 8°C) use 2 mm standard. For warehouse dock doors with forklift traffic use 3 mm or 4 mm ribbed strips.
How long does a PVC strip curtain last?
Standard-grade strips last 3 to 5 years in normal indoor traffic. Polar-grade lasts 2 to 3 years in deep-freeze. Ribbed dock-grade lasts 18 to 24 months under forklift impact.
Do I need a separate hookon system to install the curtain?
Yes — stainless-steel hookon plates are sold separately. One plate per strip; pre-drilled for M6 hardware. Chronovex bundles a recommended hookon SKU with every roll size.
SKU:magnetic-pvc-strip-2mm-normal
Categories:All Products, PVC Strip Curtain
Share:

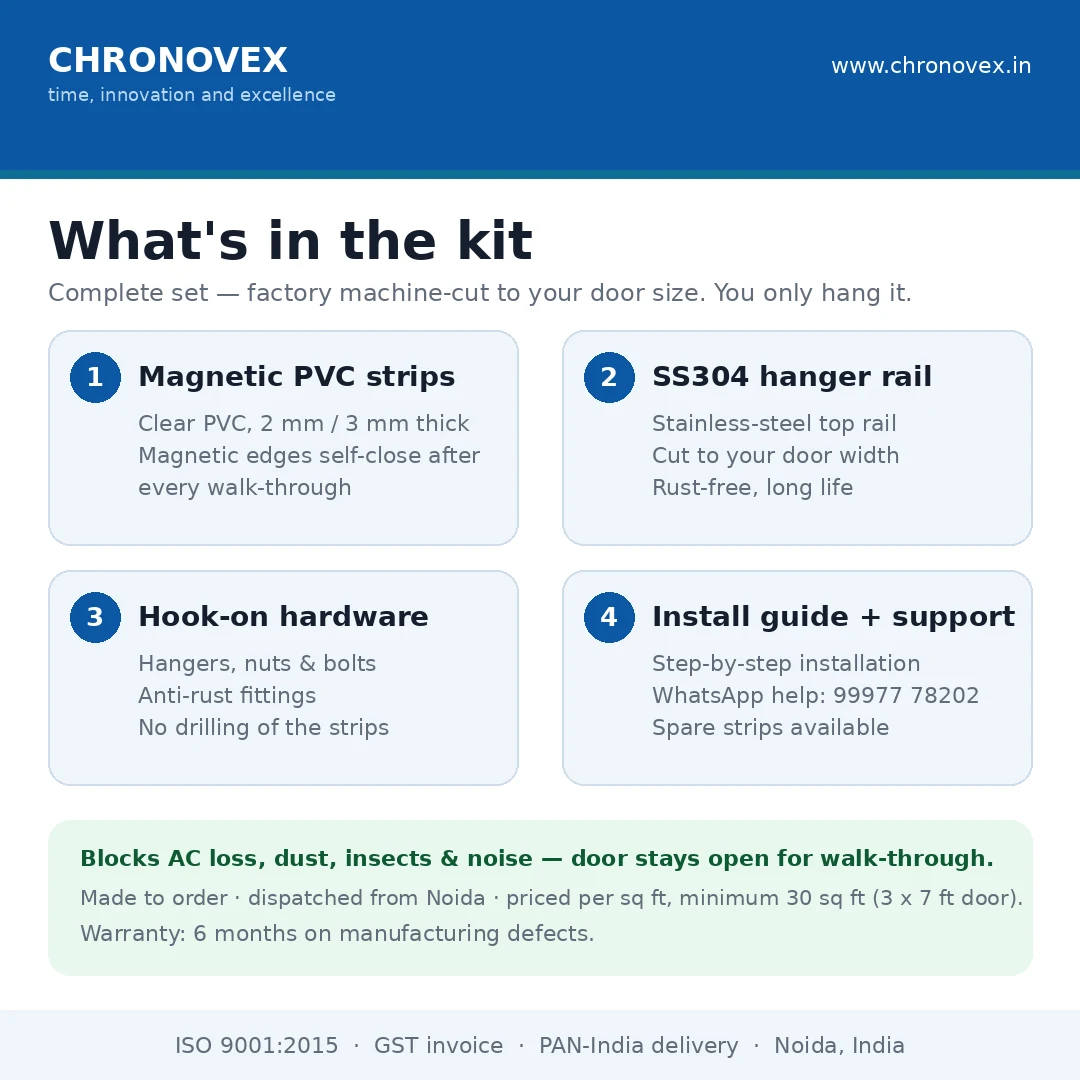

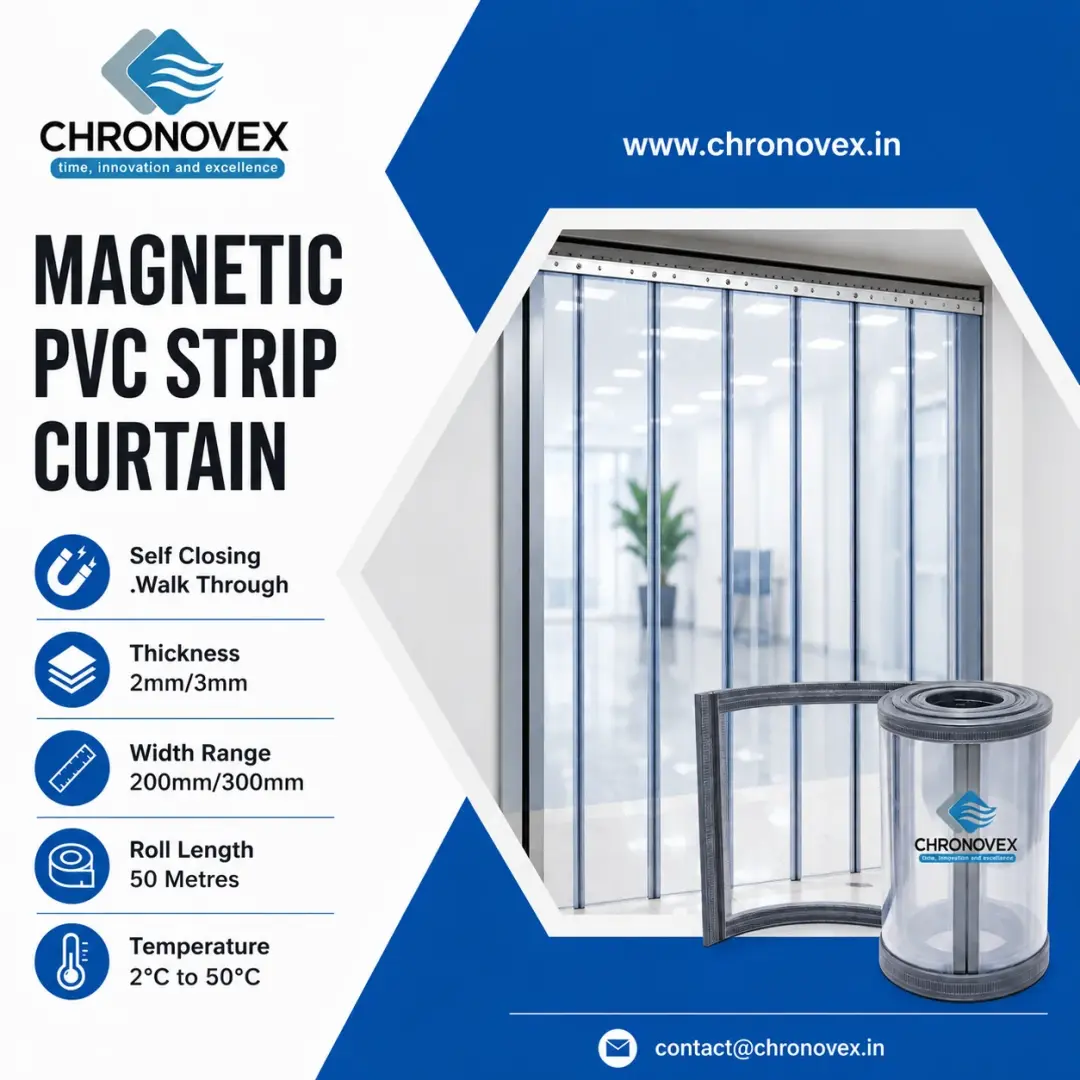

Magnetic Self-Closing PVC Strip Curtain Complete Set
Magnetic auto-close door curtain kit — strips + rail + hardware, zero-leak AC + cold-room solution. ISO 9001:2015 Noida • GST tax invoice • pan-India dispatch
📋 At a glance
- Magnetic-edge PVC strips (auto self-close)
- SS304 hanger rail (door-width matched)
- Anti-rust hardware kit
- Door sizes: 3ft / 4ft / 5ft / 6ft
- Strips auto-pull together when door is shut
- Zero air-leak between strips (vs 5-10% on plain PVC)
- Warranty: 6 months manufacturing defects (PVC material) / 12 months on hardware (steel rail + hooks)
- Compliance: RoHS, ISO 9001:2015 (Chronovex Noida QMS), food-grade compound where specified
- HSN code: 3920 49 00 — GST 18%
📖 Where this is used
Engineered for: clinic OPD entrances, AC office doors, pharmacy doorways, cold room anterooms, sterile zone barriers.
This magnetic self-closing complete set PVC product is part of the Chronovex industrial PVC strip curtain range — used by FMCG plants, cold-storage facilities, automotive body shops, hospitals, restaurants, schools, banks, and SME retail across India. Each unit ships from Chronovex Noida factory with full GST invoice for ITC claim.
🔍 Why pick this from Chronovex?
- 🏭 Manufactured at our Noida factory — not re-branded imports. Quality control by ISO 9001:2015 certified QMS, with batch traceability for B2B audit.
- 📦 Same-day dispatch — stocked at Noida warehouse. Tier-1 cities (Delhi-NCR, Mumbai, Bangalore, Chennai, Hyderabad, Pune, Ahmedabad, Kolkata) typically receive in 24–48 hours via insured courier.
- 📄 Full GST tax invoice — HSN 3920 49 00, GST 18%. ITC-claim valid invoice with e-way bill auto-generated for shipments above ₹50,000.
- 🎓 Free pre-purchase consultation — our sales team helps you spec the right width, thickness, and overlap for your door size and traffic load. WhatsApp / email / phone support.
- 🔎 Bulk pricing — 5+ units bulk slab, 10+ units free pan-India shipping. AMC vendors and authorized resellers get dedicated pricing tier with 30–60 day terms (subject to credit approval).
- 🎯 Installation support — Tier-1 cities mein paid on-site installation available. Free PDF installation guide included with every order.
❓ Frequently asked questions

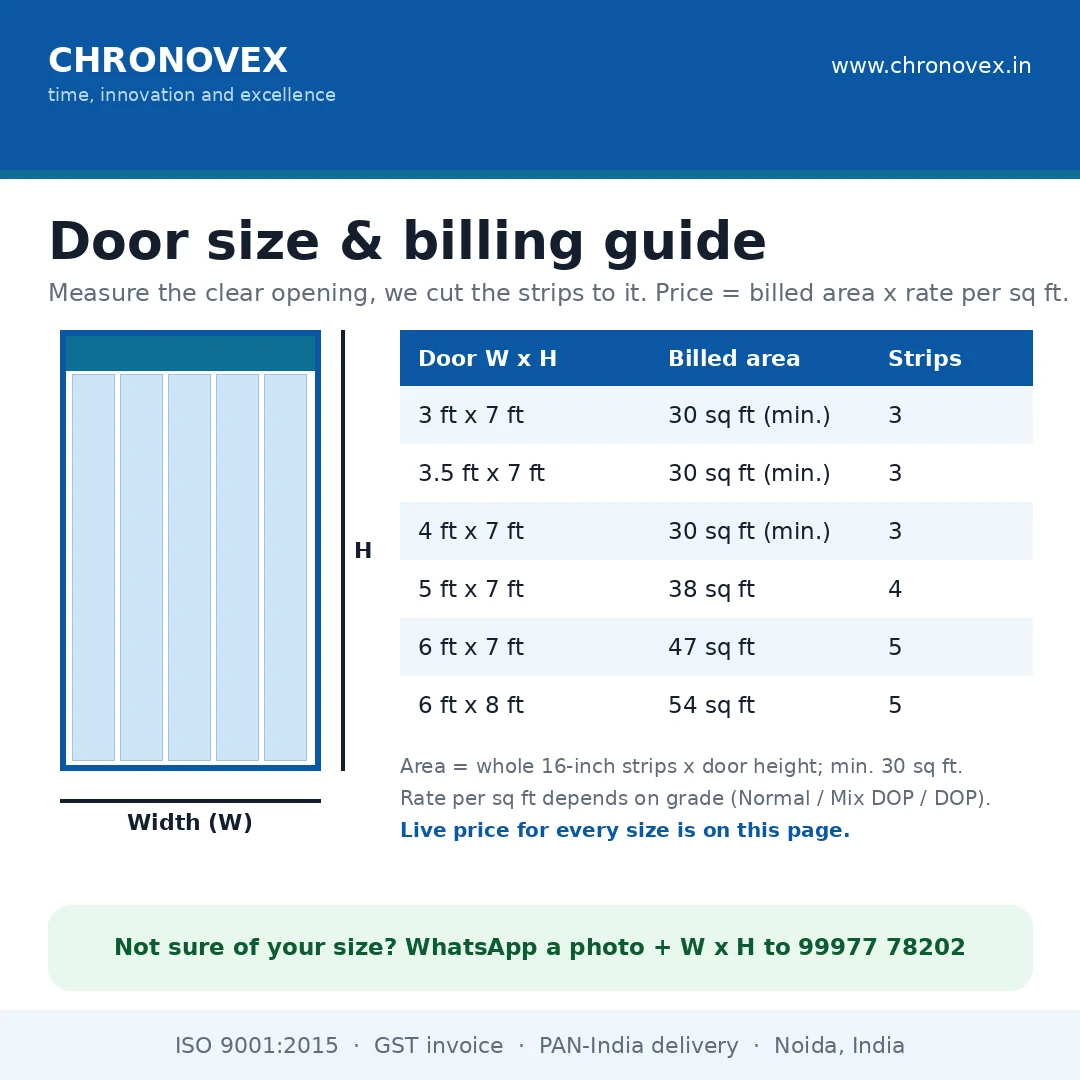

Sizing kaise decide karu (width, thickness, overlap)?Door width pata hona zaroori hai. Standard rule: strip width = 200mm for doors below 6ft, 300mm/400mm for wider doors. Thickness: 2mm general purpose, 3mm heavy-duty (fork-lift / loading), 4mm extreme heavy-duty. 50% strip overlap recommended for full air-seal (each strip overlaps the next by half its width). Hamari sales team aapke door dimensions ke basis par exact spec recommend kar deti hai — WhatsApp ya email kar do.
Roll vs Complete Set — kya farak hai?Roll bulk material hai — aap khud apne hardware (hanger rail, hooks) use karke install karte ho. Complete Set ready-to-install kit hai — pre-cut strips + SS304 hanger rail + anti-rust hardware sab box mein milta hai for the specified door size. Single door par install kar rahe ho to Complete Set lo (zyada convenient). Multiple doors ya custom dimensions ke liye Roll + Hanger Hardware separately lo (zyada cost-effective).
Installation kaise karte hain?Door frame ke top par steel angle bracket / unistrut use karke hanger rail mount karte hain (4-6 M8 expansion bolts in concrete, or 4 self-tap screws in steel frame). Phir hooks / M-clamps se PVC strips ko rail par hang karte hain with 50% overlap. Time: 30–45 minutes for a 6ft door with 2-person crew. Free PDF installation guide har order ke saath milta hai. Tier-1 cities mein professional installation service available hai at ₹1,500–3,000 per door.
Kaunsa PVC variant choose karu?Clear/Plain: general AC retention + dust barrier (warehouses, offices). Polar: cold rooms (-25°C tak flexible). Ribbed: fork-lift / loading bays (anti-scratch). Opaque: privacy + visual barrier (production lines). Amber: food zones (insect-repelling). Welding: fabrication shops (UV-filter, FR-grade). Magnetic: AC offices, clinics (zero-leak self-close). Sales team apne use-case batao to exact match recommend ho jayega.
Warranty kya hai aur replacement kaise milti hai?PVC material par 6-month manufacturing defect warranty (cracks, tears, premature brittleness from compound defect). Steel hardware par 12-month rust/corrosion warranty. Mechanical damage (fork-lift impact, cutting, abrasion from heavy traffic) coverage ke bahar hai — normal wear-and-tear is expected. Claim ke liye original invoice + photo defect ka courier karna hota hai Noida HQ ko. Approved claim mein replacement 5–7 working days mein dispatch ho jaata hai.
Bulk pricing aur AMC vendor terms kya hain?5+ units par bulk slab pricing, 10+ par free pan-India shipping, 25+ par custom branding (your logo embossed on hanger / packaging) ki facility hai with 3-week lead time. AMC vendors aur authorized Chronovex resellers ke liye dedicated pricing tier with 30–60 day payment terms (credit approval subject to). Sales team se contact karo through the product page form for actual bulk / vendor quote.
HSN code + GST invoice details?HSN 3920 49 00 — GST 18%. Full tax invoice provided for ITC claim. B2B GST registered buyers ke liye e-way bill auto-generated for shipments above ₹50,000. MSME registered ke liye 30-day payment terms available on approval. Service partners aur AMC vendors ke liye separate vendor code allotted for consolidated monthly billing.
Frequently Asked Questions
Find answers to common questions about this product
The magnetic edge is a flexible ferrous strip co-extruded into both vertical edges of each PVC strip during manufacture. When you install two strips side-by-side with opposing magnetic polarity, they snap together to form a 100%-sealed seam. When forklift / personnel traffic displaces the strips, they automatically return to the sealed position without manual adjustment — unlike standard smooth-edge PVC strips which often hang misaligned and leak air. This makes magnetic-edge PVC the gold standard for cold-storage and pharma airlock entries.
The PVC base is MIX-DOP plasticiser grade, rated −25 °C to +60 °C continuous service. Magnetic edge bond is rated to −30 °C — it does not crack or delaminate in blast-freezer cycles. Tested for 10,000 displacement-reseal cycles in our Noida QA lab without magnetic-bond failure.
Pre-assembled magnetic-edge PVC curtain set — strips self-seal when displaced and return to a 100% seal automatically. Ships with SS304 hangers and reinforced mounting brackets. Standard and polar-grade PVC rely on overlap (typically 50%) to seal air gaps; magnetic-edge PVC seals 100% even with 0% overlap, which dramatically reduces air-loss and condensation/frost build-up at door thresholds. It costs 30–40% more than standard polar PVC but pays back in 4–6 months for cold-storage operators.
Typical payback is 4 months for cold-storage operators. The 100% air-seal cuts refrigeration load by 15–25% vs standard polar PVC, which for a 1000 sqft cold-room running at -18 °C typically saves ₹12–18k/month in electricity. Add reduced food-spoilage losses (less ambient-air ingress = less product temp-rise during door open events) and payback often falls below 4 months.
HSN 3920 49 (Other plates / sheets of PVC, non-cellular, not reinforced), GST 18%. Every Chronovex B2B invoice carries IRN (Invoice Reference Number) and a signed QR code per CBIC e-invoicing rules — fully GSTR-2B eligible for input tax credit. PAN, GSTIN and HSN print on the invoice. We are ISO 9001:2015 certified.
Hardware (hangers / brackets) carries a 1-year manufacturing-defect warranty. The magnetic-edge bond carries an extended 3-year warranty against delamination or magnetic-strength loss — unique to our magnetic-edge product. PVC strip wear is normal in forklift-traffic doors (1–2 year lifetime); replacement magnetic strips are stocked at our Noida warehouse for same-day dispatch. WhatsApp +91 99977-78202 with your original IRN for replacement orders.
