Magnetic PVC Strip Roll
₹18,149 ₹25,749
Magnetic-edge PVC roll — self-closes on door open, zero air leak from gap between strips.
- ✨ Magnetic edge band on each strip (auto-pull together)
- 📏 Widths: 200mm / 300mm
- 🏭 Best for — AC offices, cold rooms, sterile zones, executive cabins, clinics.
- 🧾 HSN 3920 49 00 + GST invoice — ITC-claim valid for B2B buyers.
✅ Full specs, sizing chart & installation guide →
❓ Frequently Asked Questions
Are Chronovex PVC strip curtains food-grade?
Yes — the standard rolls comply with BIS IS 10146 (specification for PVC in contact with foodstuffs). Polar-grade rolls for cold storage are dosed for flexibility at −25°C.
What thickness should I order for cold storage vs. a loading dock?
For freezer rooms (−18°C and below) use 3 mm polar-grade strips with 50% overlap. For chiller rooms (0°C to 8°C) use 2 mm standard. For warehouse dock doors with forklift traffic use 3 mm or 4 mm ribbed strips.
How long does a PVC strip curtain last?
Standard-grade strips last 3 to 5 years in normal indoor traffic. Polar-grade lasts 2 to 3 years in deep-freeze. Ribbed dock-grade lasts 18 to 24 months under forklift impact.
Do I need a separate hookon system to install the curtain?
Yes — stainless-steel hookon plates are sold separately. One plate per strip; pre-drilled for M6 hardware. Chronovex bundles a recommended hookon SKU with every roll size.
Roll calculator — how many rolls for your doors
Price is per roll of 30 m. Enter your door sizes: we work out the metres of magnetic PVC strip and the rolls you need.
Get a Callback / Quote on WhatsApp
Already purchased? Register your unit Get your warranty activated within 24 hrs — Hinglish helpline available.
Register Now SKU: magnetic-pvc-roll-2mm
Categories: PVC Roll
Share:

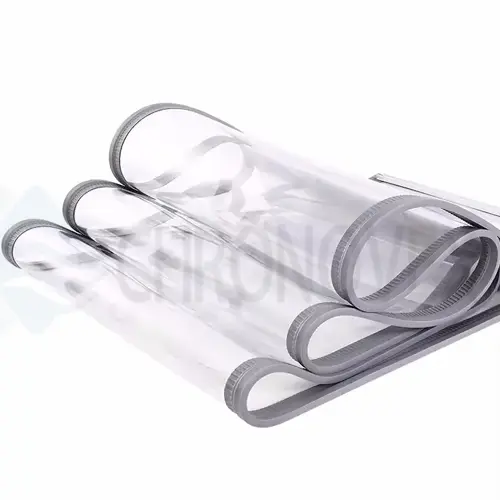

Magnetic Self-Sealing PVC Strip Roll
Magnetic-edge PVC roll — self-closes on door open, zero air leak from gap between strips. ISO 9001:2015 Noida • GST tax invoice • pan-India dispatch

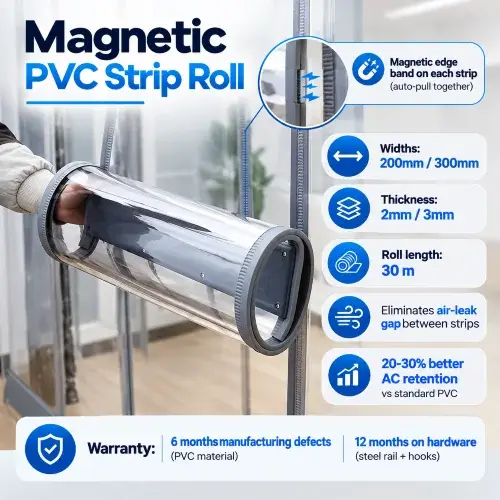

📋 At a glance
- Magnetic edge band on each strip (auto-pull together)

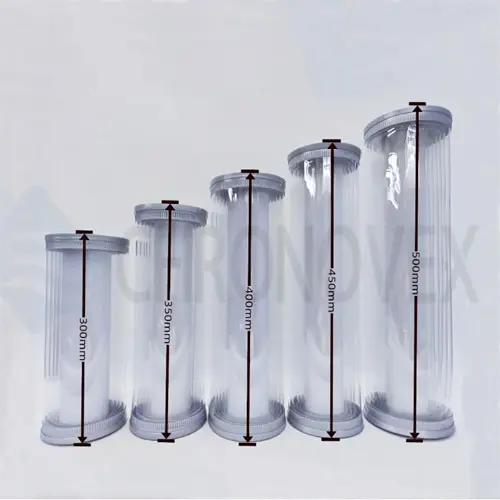

- Widths: 200mm / 300mm
- Thickness: 2mm / 3mm
- Roll length: 30 m
- Eliminates air-leak gap between strips
- 20-30% better AC retention vs standard PVC
- Warranty: 6 months manufacturing defects (PVC material) / 12 months on hardware (steel rail + hooks)
- Compliance: RoHS, ISO 9001:2015 (Chronovex Noida QMS), food-grade compound where specified
- HSN code: 3920 49 00 — GST 18%
📖 Where this is used
Engineered for: executive office doors, sterile room entrances, clinic OPDs, AC retention critical zones.

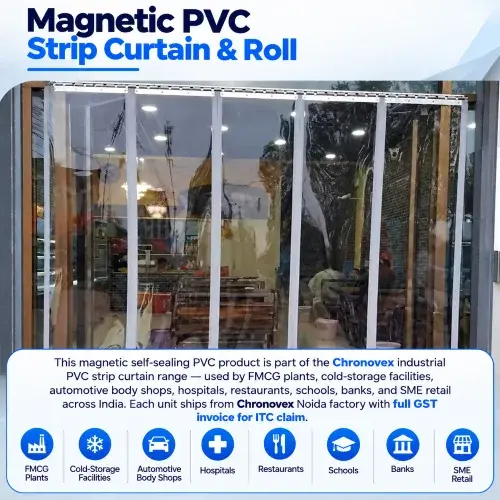

This magnetic self-sealing PVC product is part of the Chronovex industrial PVC strip curtain range — used by FMCG plants, cold-storage facilities, automotive body shops, hospitals, restaurants, schools, banks, and SME retail across India. Each unit ships from Chronovex Noida factory with full GST invoice for ITC claim.
🔍 Why pick this from Chronovex?
- 🏭 Manufactured at our Noida factory — not re-branded imports. Quality control by ISO 9001:2015 certified QMS, with batch traceability for B2B audit.
- 📦 Same-day dispatch — stocked at Noida warehouse. Delhi NCR receives the same day and every other pincode (Mumbai, Bangalore, Chennai, Hyderabad, Pune, Ahmedabad, Kolkata and the rest of India) in 4–7 days via insured courier.
- 📄 Full GST tax invoice — HSN 3920 49 00, GST 18%. ITC-claim valid invoice with e-way bill auto-generated for shipments above ₹50,000.
- 🎓 Free pre-purchase consultation — our sales team helps you spec the right width, thickness, and overlap for your door size and traffic load. WhatsApp / email / phone support.
- 🔎 Bulk pricing — 5+ units bulk slab, 10+ units free pan-India shipping. AMC vendors and authorized resellers get dedicated pricing tier with 30–60 day terms (subject to credit approval).
- 🎯 Installation support — Paid on-site installation is available in Tier-1 cities. Free PDF installation guide included with every order.
❓ Frequently asked questions
How do I decide the sizing (width, thickness, overlap)?
You need to know the door width. Standard rule: strip width = 200mm for doors below 6ft, 300mm/400mm for wider doors. Thickness: 2mm general purpose, 3mm heavy-duty (fork-lift / loading), 4mm extreme heavy-duty. 50% strip overlap recommended for full air-seal (each strip overlaps the next by half its width). Our sales team will recommend the exact spec based on your door dimensions — just WhatsApp or email us.
Roll vs Complete Set — what is the difference?
The Roll is bulk material — you install it with your own hardware (hanger rail, hooks). The Complete Set is a ready-to-install kit — pre-cut strips + SS304 hanger rail + anti-rust hardware all come in one box for the specified door size. For a single door, take the Complete Set (more convenient). For multiple doors or custom dimensions, take the Roll + Hanger Hardware separately (more cost-effective).
How is it installed?
The hanger rail is mounted at the top of the door frame with a steel angle bracket / unistrut (4-6 M8 expansion bolts in concrete, or 4 self-tap screws in a steel frame). The PVC strips are then hung on the rail with hooks / M-clamps at 50% overlap. Time: 30–45 minutes for a 6ft door with a 2-person crew. A free PDF installation guide comes with every order. Professional installation is available in Tier-1 cities at ₹1,500–3,000 per door.
Kaunsa PVC variant choose karu?
Clear/Plain: general AC retention + dust barrier (warehouses, offices). Polar: cold rooms (flexible down to -25°C). Ribbed: fork-lift / loading bays (anti-scratch). Opaque: privacy + visual barrier (production lines). Amber: food zones (insect-repelling). Welding: fabrication shops (UV-filter, FR-grade). Magnetic: AC offices, clinics (zero-leak self-close). Tell our sales team your use case and they will recommend the exact match.
What is the warranty and how do I get a replacement?
6-month manufacturing defect warranty on the PVC material (cracks, tears, premature brittleness from a compound defect). 12-month rust/corrosion warranty on the steel hardware. Mechanical damage (fork-lift impact, cutting, abrasion from heavy traffic) is not covered — normal wear-and-tear is expected. To claim, courier the original invoice + a photo of the defect to Noida HQ. An approved claim's replacement is dispatched within 5–7 working days.
What are the bulk pricing and AMC vendor terms?
Bulk slab pricing on 5+ units, free pan-India shipping on 10+, and custom branding (your logo embossed on the hanger / packaging) on 25+ with a 3-week lead time. AMC vendors and authorised Chronovex resellers get a dedicated pricing tier with 30–60 day payment terms (subject to credit approval). Contact the sales team through the product page form for an actual bulk / vendor quote.
HSN code + GST invoice details?
HSN 3920 49 00 — GST 18%. Full tax invoice provided for ITC claim. E-way bill auto-generated for B2B GST-registered buyers on shipments above ₹50,000. 30-day payment terms available on approval for MSME-registered buyers. Service partners and AMC vendors get a separate vendor code for consolidated monthly billing.
Where this is used
Popular across cold storage · food processing · pharma · factories · warehouses · hotels.
Frequently Asked Questions
Find answers to common questions about this product

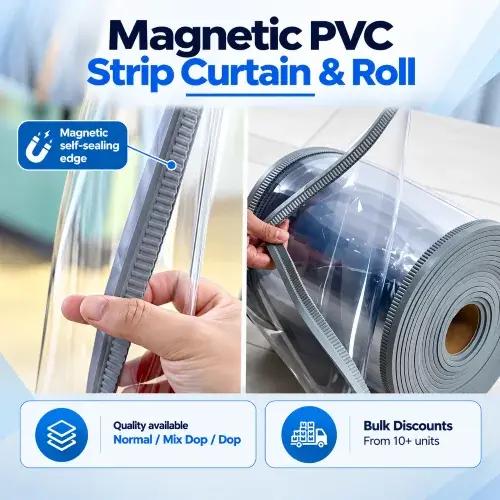

The magnetic edge is a flexible ferrous strip co-extruded into both vertical edges of each PVC strip during manufacture. When you install two strips side-by-side with opposing magnetic polarity, they snap together to form a 100%-sealed seam. When forklift / personnel traffic displaces the strips, they automatically return to the sealed position without manual adjustment — unlike standard smooth-edge PVC strips which often hang misaligned and leak air. This makes magnetic-edge PVC the gold standard for cold-storage and pharma airlock entries.
The PVC base is MIX-DOP plasticiser grade, rated −25 °C to +60 °C continuous service. Magnetic edge bond is rated to −30 °C — it does not crack or delaminate in blast-freezer cycles. Tested for 10,000 displacement-reseal cycles in our Noida QA lab without magnetic-bond failure.
Magnetic-edge PVC strip with embedded ferrous strip on both vertical edges — strips self-seal when used in opposing pairs, eliminating gaps between adjacent strips. Ideal for cold-storage where 100% air-seal matters. Standard and polar-grade PVC rely on overlap (typically 50%) to seal air gaps; magnetic-edge PVC seals 100% even with 0% overlap, which dramatically reduces air-loss and condensation/frost build-up at door thresholds. It costs 30–40% more than standard polar PVC but pays back in 4–6 months for cold-storage operators.
Typical payback is 4 months for cold-storage operators. The 100% air-seal cuts refrigeration load by 15–25% vs standard polar PVC, which for a 1000 sqft cold-room running at -18 °C typically saves ₹12–18k/month in electricity. Add reduced food-spoilage losses (less ambient-air ingress = less product temp-rise during door open events) and payback often falls below 4 months.
HSN 3920 49 (Other plates / sheets of PVC, non-cellular, not reinforced), GST 18%. Every Chronovex B2B invoice carries IRN (Invoice Reference Number) and a signed QR code per CBIC e-invoicing rules — fully GSTR-2B eligible for input tax credit. PAN, GSTIN and HSN print on the invoice. We are ISO 9001:2015 certified.
Hardware (hangers / brackets) carries a 1-year manufacturing-defect warranty. The magnetic-edge bond carries an extended 3-year warranty against delamination or magnetic-strength loss — unique to our magnetic-edge product. PVC strip wear is normal in forklift-traffic doors (1–2 year lifetime); replacement magnetic strips are stocked at our Noida warehouse for same-day dispatch. WhatsApp +91 9997778202 with your original IRN for replacement orders.
