Amber / Anti-Insect Yellow PVC Strip Curtain (Complete Set)
₹189 / sq ft ₹269
Standard 3 ft × 7 ft door≈ ₹5,103
Complete kit · GST invoice · made to your door size · all door sizes ↓
Get exact price for my door on WhatsAppInsect-repelling complete door curtain — amber strips + steel hardware for food-grade facilities.
- ✨ Amber/yellow PVC strips (200mm or 300mm)
- 📏 SS304 hanger rail (food-grade)
- 🏭 Best for — food processing, dairies, bakeries, FMCG packaging, restaurant kitchens.
- 🧾 HSN 3920 49 00 + GST invoice — ITC-claim valid for B2B buyers.
✅ Full specs, sizing chart & installation guide →
❓ Frequently Asked Questions
Are Chronovex insect catchers safe for food-handling areas?
Yes. Chronovex glue-pad insect catchers use no insecticide spray and no electrocution grid — they comply with FSSAI Schedule IV (Hygienic Practices) which specifies non-toxic pest control for food premises.
What is the difference between glue-pad and electric-grid insect killers?
Glue-pad units trap insects on a replaceable adhesive board (no "zap" debris, food-safe). Electric-grid units electrocute insects — effective for warehouses and outdoor sheds but not recommended directly above food prep.
How often should the glue pad be replaced?
Replace the glue pad every 30 days, or sooner if more than 60% of the surface is covered with trapped insects. Chronovex glue-pad refills are sold as spare-parts SKUs.
What is the coverage area of a single insect catcher?
Coverage depends on UV wattage. A 2x15W unit covers ~80 sq m, a 2x20W unit covers ~120 sq m. Mount at 2.0 to 2.5 m height, away from competing light sources.
Price calculator for your door

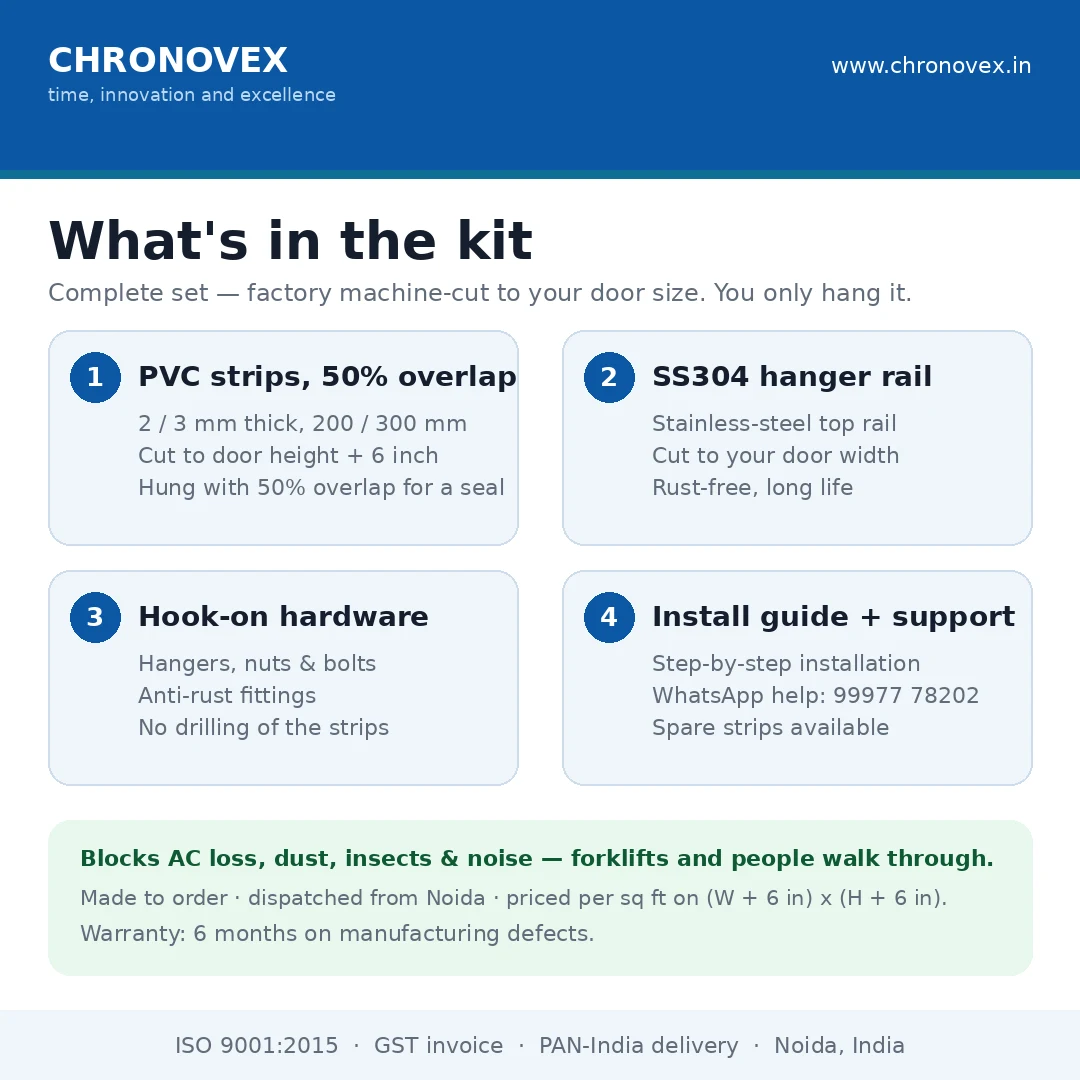

Price is per square foot (sq ft). It is a complete set: PVC strips, hanger hardware (hook-ons), nuts & bolts, factory machine-cut to your door size — you only hang it.

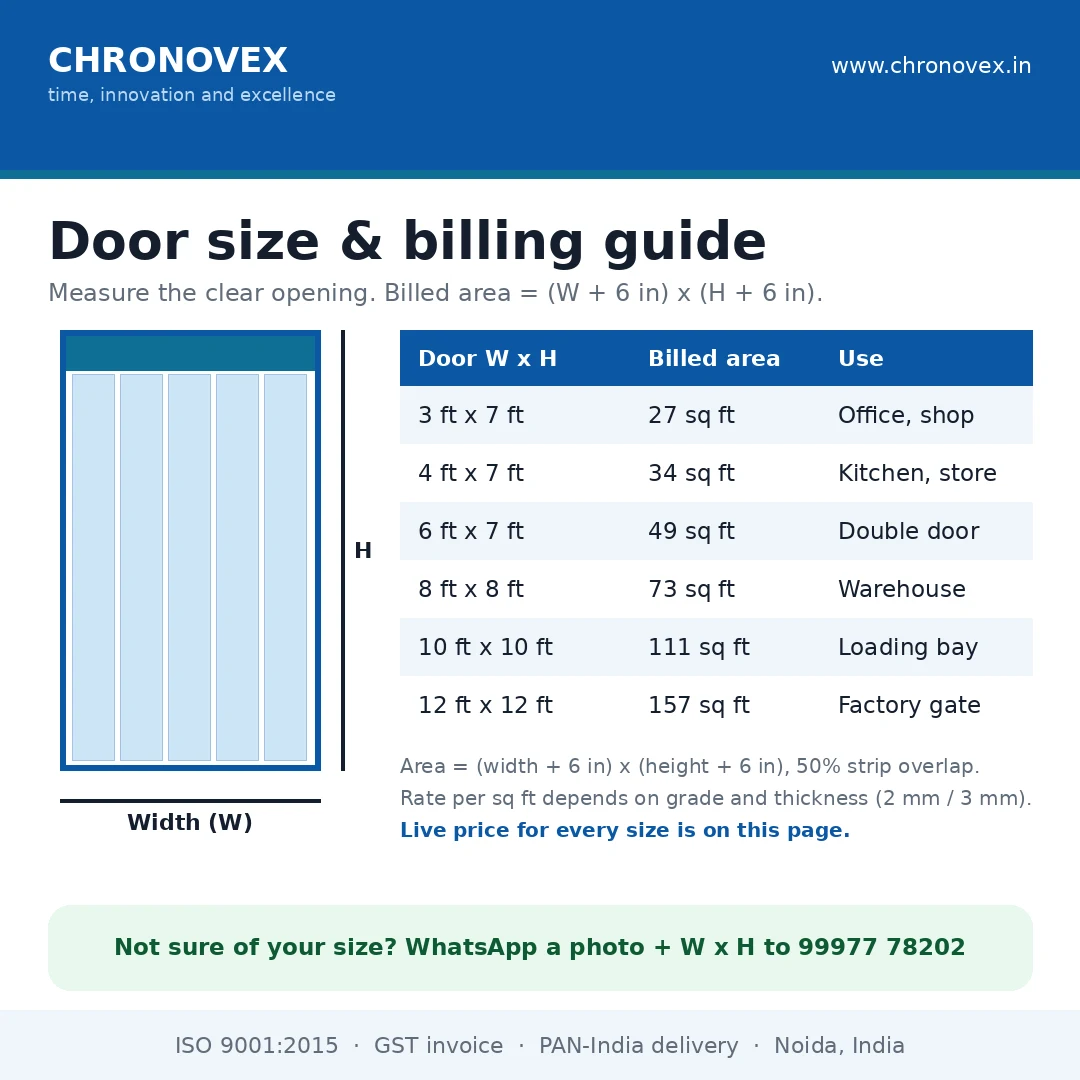

PVC strip curtain price for common door sizes
Complete set with PVC strips, hook-on hardware and nuts & bolts, factory-cut to your door. Typical sizes for homes, AC rooms, shops, cold rooms and loading bays.
| Door size (W × H) | Billed area | Approx. price |
|---|---|---|
| 3 ft × 7 ft | 27 sq ft | ₹5,103 |
| 4 ft × 7 ft | 34 sq ft | ₹6,426 |
| 6 ft × 7 ft | 49 sq ft | ₹9,261 |
| 8 ft × 8 ft | 73 sq ft | ₹13,797 |
| 10 ft × 10 ft | 111 sq ft | ₹20,979 |
| 12 ft × 12 ft | 157 sq ft | ₹29,673 |
At ₹189/sq ft (Normal · 2 mm), GST included. Area = (width + 6 inch) × (height + 6 inch), strips with 50% overlap. For your exact door size, use the price calculator below.
Get a Callback / Quote on WhatsApp
Already purchased? Register your unit Get your warranty activated within 24 hrs — Hinglish helpline available.
Register Now SKU: 163-2 MM-NORMAL
Categories: PVC Strip Curtain
Share:
Video dekhein
PVC strip curtain installation
Sliding PVC strip curtain
Hook-on hardware for PVC strip curtainsSaath mein ye bhi lagta hai
Air Curtain 3 Feet | Metal Body (Standard Series)Door khula rehta hai? Air curtain AC ki thandak andar rakhta hai₹13,749
Magnetic PVC Strip Curtain | Self-Closing Industrial Curtain | ChronovexAC room ke door ke liye self-closing magnetic parda₹9,570 (3x7 ft door)
Insect Killer 1 Feet (Bluster 12-PK) | ChronovexMakkhi-machchhar ke liye insect killer saath lagayein₹3,919Aapne haal hi mein dekha
Amber Anti-Insect PVC Strip Curtain Complete Set
Insect-repelling complete door curtain — amber strips + steel hardware for food-grade facilities. ISO 9001:2015 Noida • GST tax invoice • pan-India dispatch
📋 At a glance
- Amber/yellow PVC strips (200mm or 300mm)
- SS304 hanger rail (food-grade)
- Anti-rust hardware kit
- Door sizes: 3ft / 4ft / 5ft / 6ft
- Insect-repelling 590nm tint
- FSSAI-compliant compound
- Warranty: 6 months manufacturing defects (PVC material) / 12 months on hardware (steel rail + hooks)
- Compliance: RoHS, ISO 9001:2015 (Chronovex Noida QMS), food-grade compound where specified
- HSN code: 3920 49 00 — GST 18%
📖 Where this is used
Engineered for: dairy processing entrances, FMCG packaging halls, bakery production doors, kitchen pass-throughs.
This amber anti-insect complete set PVC product is part of the Chronovex industrial PVC strip curtain range — used by FMCG plants, cold-storage facilities, automotive body shops, hospitals, restaurants, schools, banks, and SME retail across India. Each unit ships from Chronovex Noida factory with full GST invoice for ITC claim.
🔍 Why pick this from Chronovex?
- 🏭 Manufactured at our Noida factory — not re-branded imports. Quality control by ISO 9001:2015 certified QMS, with batch traceability for B2B audit.
- 📦 Same-day dispatch — stocked at Noida warehouse. Delhi NCR receives the same day and every other pincode (Mumbai, Bangalore, Chennai, Hyderabad, Pune, Ahmedabad, Kolkata and the rest of India) in 4–7 days via insured courier.
- 📄 Full GST tax invoice — HSN 3920 49 00, GST 18%. ITC-claim valid invoice with e-way bill auto-generated for shipments above ₹50,000.
- 🎓 Free pre-purchase consultation — our sales team helps you spec the right width, thickness, and overlap for your door size and traffic load. WhatsApp / email / phone support.
- 🔎 Bulk pricing — 5+ units bulk slab, 10+ units free pan-India shipping. AMC vendors and authorized resellers get dedicated pricing tier with 30–60 day terms (subject to credit approval).
- 🎯 Installation support — Paid on-site installation is available in Tier-1 cities. Free PDF installation guide included with every order.
❓ Frequently asked questions
How do I decide the sizing (width, thickness, overlap)?
You need to know the door width. Standard rule: strip width = 200mm for doors below 6ft, 300mm/400mm for wider doors. Thickness: 2mm general purpose, 3mm heavy-duty (fork-lift / loading), 4mm extreme heavy-duty. 50% strip overlap recommended for full air-seal (each strip overlaps the next by half its width). Our sales team will recommend the exact spec based on your door dimensions — just WhatsApp or email us.
Roll vs Complete Set — what is the difference?
The Roll is bulk material — you install it with your own hardware (hanger rail, hooks). The Complete Set is a ready-to-install kit — pre-cut strips + SS304 hanger rail + anti-rust hardware all come in one box for the specified door size. For a single door, take the Complete Set (more convenient). For multiple doors or custom dimensions, take the Roll + Hanger Hardware separately (more cost-effective).
How is it installed?
The hanger rail is mounted at the top of the door frame with a steel angle bracket / unistrut (4-6 M8 expansion bolts in concrete, or 4 self-tap screws in a steel frame). The PVC strips are then hung on the rail with hooks / M-clamps at 50% overlap. Time: 30–45 minutes for a 6ft door with a 2-person crew. A free PDF installation guide comes with every order. Professional installation is available in Tier-1 cities at ₹1,500–3,000 per door.
Kaunsa PVC variant choose karu?
Clear/Plain: general AC retention + dust barrier (warehouses, offices). Polar: cold rooms (flexible down to -25°C). Ribbed: fork-lift / loading bays (anti-scratch). Opaque: privacy + visual barrier (production lines). Amber: food zones (insect-repelling). Welding: fabrication shops (UV-filter, FR-grade). Magnetic: AC offices, clinics (zero-leak self-close). Tell our sales team your use case and they will recommend the exact match.
What is the warranty and how do I get a replacement?
6-month manufacturing defect warranty on the PVC material (cracks, tears, premature brittleness from a compound defect). 12-month rust/corrosion warranty on the steel hardware. Mechanical damage (fork-lift impact, cutting, abrasion from heavy traffic) is not covered — normal wear-and-tear is expected. To claim, courier the original invoice + a photo of the defect to Noida HQ. An approved claim's replacement is dispatched within 5–7 working days.
What are the bulk pricing and AMC vendor terms?
Bulk slab pricing on 5+ units, free pan-India shipping on 10+, and custom branding (your logo embossed on the hanger / packaging) on 25+ with a 3-week lead time. AMC vendors and authorised Chronovex resellers get a dedicated pricing tier with 30–60 day payment terms (subject to credit approval). Contact the sales team through the product page form for an actual bulk / vendor quote.
HSN code + GST invoice details?
HSN 3920 49 00 — GST 18%. Full tax invoice provided for ITC claim. E-way bill auto-generated for B2B GST-registered buyers on shipments above ₹50,000. 30-day payment terms available on approval for MSME-registered buyers. Service partners and AMC vendors get a separate vendor code for consolidated monthly billing.
Frequently Asked Questions
Find answers to common questions about this product
Installation typically takes 30–60 minutes for one trained installer on a standard masonry / RCC lintel. We provide a printed installation guide, a PDF guide, and free WhatsApp video-call support to walk you through alignment, overlap and hardware installation. No power tools are required for standard masonry lintels — just an M8 spanner and a step-ladder. Pan-India service partner dispatch available in 80+ cities.
For doorways with 50–100 footfall passes per hour, 200 mm × 2 mm is sufficient. For forklift / pallet-truck traffic, specify 200 mm × 3 mm or 300 mm × 3 mm. For doorways wider than 4 metres or with high air-pressure differential (cold-storage with refrigeration push), 300 mm × 3 mm is recommended to maintain seal integrity. Share your door W × H + traffic type on WhatsApp +91 9997778202 and we will spec it for you.
The Complete Set ships ready-to-install with pre-cut strips, hangers and brackets sized for a specific doorway. The PVC roll is sold by the metre and you cut the strips on-site to your door dimensions. Roll form is 15–25% cheaper per linear metre but assumes you have an on-site team with a hot-wire cutter or sharp blade and you order rail / brackets separately. Complete Set is the right choice for one-time installs or sites without fabrication capability.
Typical payback for a Amber Anti-Insect Yellow Complete Set is 4 months in conditioned-air environments. The curtain blocks 80–85% of air loss through an open doorway; for a 1500–3000 sqft HVAC area at ₹12/sqft/month conditioning cost, the set pays for itself in 4 months. Add hygiene savings (FSSAI / pest-control audit) and payback often falls below 4 months.
HSN 3920 49 (Other plates / sheets of PVC, non-cellular, not reinforced), GST 18%. Every Chronovex B2B invoice carries IRN (Invoice Reference Number) and a signed QR code per CBIC e-invoicing rules — fully GSTR-2B eligible for input tax credit. PAN, GSTIN and HSN print on the invoice. We are ISO 9001:2015 certified.
Hangers, brackets and hooks carry a 1-year manufacturing-defect warranty. PVC strips are classified as wear-items and are not covered by warranty — they typically last 3–5 years in normal industrial use, 1–2 years in forklift-traffic doorways. Replacement strips for any of our Complete Sets are stocked at our Noida warehouse and ship within 2–3 working days. WhatsApp +91 9997778202 for replacement strip orders — just share the IRN of the original purchase.
