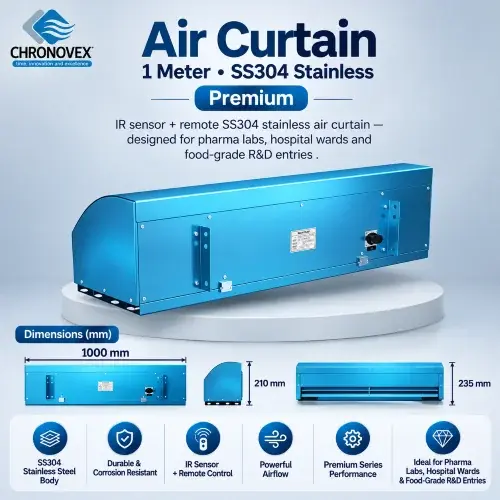

Air Curtain 1 Meter | SS Body SS304 (Premium Series)
₹26,990.00 ₹34,990.00
Air Curtain 1 Meter — SS304 Stainless (Premium)
- Body: SS304 stainless steel (1.0 mm) — food-grade, corrosion-resistant, hygienic finish
- Door coverage: 1.0 m × 2.3 m air barrier
- Motor: 200 W · 2 motor / 3 blower
- Airflow: 1,500 CFM (high) / 1,100 CFM (low) · 14 m/s outlet
- Noise: ≤ 65 dB(A) at 1 m
- Power: 220 V · single phase · 50 Hz
- Use: IR sensor + remote SS304 stainless air curtain — designed for pharma labs, hospital wards ...
- HSN: 8414 59 10 · GST invoice · ISO 9001:2015 Noida
❓ Frequently Asked Questions
SKU:SSXP1
Categories:Stainless Steel (SS304) Air Curtains
Air Curtain 1 Meter · SS304 Stainless · Premium
IR sensor + remote SS304 stainless air curtain — designed for pharma labs, hospital wards and food-grade R&D entries.
🔎 At a glance
Chronovex SS304 stainless body air curtains — built in Noida for India’s food, pharma and clean-environment doorways. The 1 Meter Premium variant covers a 1.0 m door with 1,500 CFM peak airflow, 200 W draw, 2-motor / 3-blower setup, and a non-corrosive 1.0 mm SS304 stainless body that handles wash-down, salt-laden coastal air, dairy condensate and pharma clean-down chemistries that destroy powder-coated steel. ISO 9001:2015. Full ITC GST invoice. Pan-India dispatch from Noida.
🔧 Why SS304 over powder-coat steel
- 🧼 Wash-down ready — SS304 survives daily caustic/sanitiser wash-down in F&B prep, dairies, meat processing and pharma corridors. Powder coat chips and rusts within 6–12 months in the same environment.
- 🧫 Food-grade hygiene — FSSAI / HACCP-friendly. No paint flakes shedding into food zones, no organic substrate for microbial colonies.
- 🌊 Coastal & humid — Mumbai, Chennai, Kochi, Vizag coastal industries see powder-coat fail in 12 months. SS304 lasts 10–15 years.
- ⚡ Same airflow envelope — 1,500 CFM peak, 14 m/s outlet velocity, 2.3 m jet reach — matches the metal-body line spec-for-spec.
- 🔌 Industrial duty — 2-motor, 3-blower setup rated for 18-hour continuous operation, ≤ 65 dB(A) at 1 m.
📋 Specifications
| Body material | SS304 stainless steel · 1.0 mm · brushed finish |
| Door coverage | 1.0 m wide · up to 2.3 m jet height |
| Wattage | 200 W |
| Motor / Blower | 2 motor / 3 blower |
| Airflow (CFM) | 1,500 (high) / 1,100 (low) |
| Outlet velocity | 14 m/s |
| Noise | ≤ 65 dB(A) at 1 m |
| Weight | 10.5 kg |
| Power supply | 220 V · single phase · 50 Hz |
| Control | IR motion sensor + IR remote |
| Auto cut-off | Yes — on door close |
| HSN | 8414 59 10 |
🏭 Best-fit applications
- 🥨 Food & beverage processing — dairy plants, bakeries, meat / poultry, ice-cream lines, packaged-food halls
- 💊 Pharma manufacturing — tablet halls, injectable rooms, clean-room buffers, R&D lab entries
- 🏥 Hospitals & clinics — OT corridors, ICU buffers, pharmacy stores
- ❄️ Cold storage — SS304 handles condensate & frequent door cycling without rusting
- 🏬 Coastal industries — Mumbai, Chennai, Kochi, Vizag, Goa plants where powder-coat fails in <12 months
🔧 Installation
Wall-mount above doorway at 2.3 m height — brackets included. Requires 220 V single-phase dedicated MCB. Licensed electrician / MEP contractor recommended. Same-day dispatch from Noida — Delhi NCR delivery 1–2 days, metros 3–5, tier-2/3 5–7 days.
❓ FAQ
Is SS304 actually food-grade? Yes — SS304 (18% Cr, 8% Ni) is the standard food-contact grade specified by FSSAI, HACCP and US FDA for direct-contact food equipment. The body is brushed-finish, non-porous, and survives daily caustic / sanitiser wash-down.
How is this different from the SS304 Premium "powder-coat" variant? This unit has a true SS304 stainless body throughout — not steel with a stainless-look coating. Worth the premium if your environment has wash-down, salt-air, condensate or pharma clean-down chemistries.
Do you ship pan-India with GST invoice? Yes — full ITC GST invoice on every order, dispatch from Noida via verified courier / transport partners.
What is the warranty? 1 year on motors, 1 year on IR sensor & remote.
