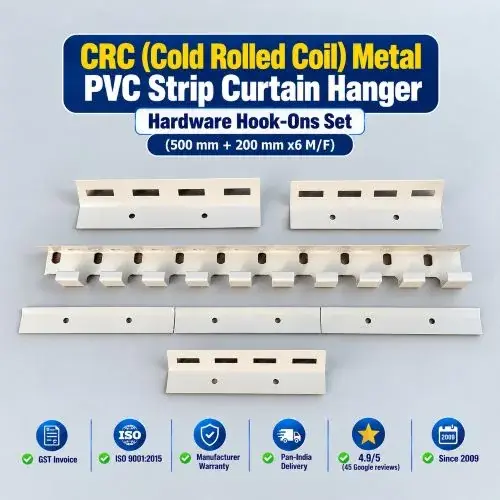

CRC (Cold Rolled Coil) Metal PVC Strip Curtain Hanger — Hardware Hook-Ons Set (500 mm + 200 mm x6 M/F) | Chronovex

Brand: Chronovex Industries Private Limited

₹590.00 ₹849.00

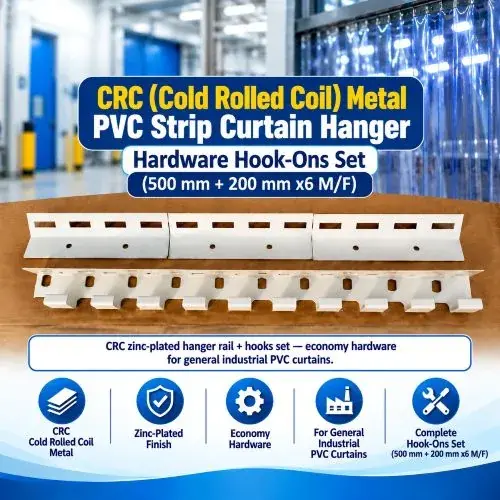

CRC zinc-plated hanger rail + hooks set — economy hardware for general industrial PVC curtains.

✨ CRC (cold-rolled coil) steel hanger rail with zinc plating
📏 Sizes: 500mm + 200mm sets
🏭 Best for — factories, warehouses, godowns, general industrial doors, retail bulk-buys.
🧾 HSN 8302 41 90 + GST invoice — ITC-claim valid for B2B buyers.

✅ Full specs, sizing chart & installation guide →

❓ Frequently Asked Questions

What does the hook-on set include and what doorway width does it cover?

The crc-hookons ships with one 500 mm primary mounting rail, one 200 mm extension rail (for non-standard doorway widths), six male/female hook-on pairs, and all mounting fasteners. The 500 mm rail covers a standard single-leaf doorway up to ~700 mm wide (with the 200 mm extension); for wider doors order multiple sets and join the rails end-to-end. Strip-to-strip spacing of 200 mm is the standard for 200 mm and 300 mm wide PVC strips; tighter spacing improves thermal sealing for cold-storage installs.

How is the crc-hookons different from cheap unbranded hangers on marketplaces?

Two concrete differences. (1) Steel gauge and plating: we use 1.6 mm CRC steel with proper zinc plating (8–12 microns); unbranded hangers are typically 1.0–1.2 mm steel with thin or absent zinc that rusts within 6–12 months even in dry-process environments. (2) Hook-on tolerance: our hooks are CNC-stamped to consistent tolerance so strips do not skew sideways during traffic; cheap stamped hooks have variable angle that causes strips to overlap unevenly and lose sealing performance.

How many sets do I need for my doorway?

For a single-leaf doorway up to ~700 mm wide use 1 set. For double-leaf doorways (1200–1400 mm) use 2 sets end-to-end. For roller-shutter / factory-shutter openings (2400 mm and wider) use 4–6 sets depending on opening width. Calculate the hook count as: doorway-width-mm ÷ 200 mm = number of hooks needed (round up to nearest multiple of 6). For complete-set PVC strip curtain orders, we supply the matching hardware factory-fitted at no extra labour.

What is the right strip width and thickness to pair with the crc-hookons?

For general industrial installs pair this zinc-plated CRC hardware with our Clear PVC strip (ambient general-purpose), Ribbed PVC (anti-scratch for forklift entry), Opaque PVC (privacy / sun-cutoff), or Welding PVC (UV-block for welding bays). Standard strip width is 200 mm for normal doorways; use 300 mm or 400 mm for wider openings. Standard thickness is 2 mm for ambient, 3 mm for forklift / pallet-truck entry, 5 mm for heavy industrial impact.

What HSN, GST rate, and tax-invoice format do you provide?

HSN 7326 90 99 (Other articles of iron or steel — Chapter 73). GST 18%. Every invoice carries IRN, signed QR (e-invoice as per CBIC mandate for B2B above the prescribed turnover threshold), our GSTIN, and HSN — fully eligible for buyer-side GSTR-2B auto-reconciliation. Input Tax Credit (ITC) is admissible for registered B2B buyers using this hardware in the course of business.

What warranty do you provide and how do I reach support?

12-month manufacturer warranty on zinc-plated finish and material defects from invoice date. Send service requests on WhatsApp +91 99977-78202 with photo + invoice; we respond within one business day. For bulk-PO buyers we offer free replacement of any unit failing under warranty within 48 hours of report.

Already purchased? Register your unit Get your warranty activated within 24 hrs — Hinglish helpline available.

SKU:crc-hookons

Categories:All Products, PVC Curtains & Rolls, Hardware Hookons, Installation & Mounting Accessories

Description
Questions and Answers

CRC Metal PVC Strip Curtain Hanger (Cold-Rolled Coil Hardware Kit)

CRC zinc-plated hanger rail + hooks set — economy hardware for general industrial PVC curtains. ISO 9001:2015 Noida • GST tax invoice • pan-India dispatch

📋 At a glance

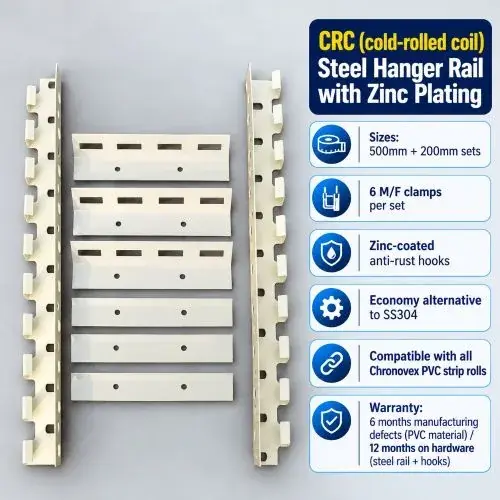

CRC (cold-rolled coil) steel hanger rail with zinc plating
Sizes: 500mm + 200mm sets
6 M/F clamps per set
Zinc-coated anti-rust hooks
Economy alternative to SS304
Compatible with all Chronovex PVC strip rolls
Warranty: 6 months manufacturing defects (PVC material) / 12 months on hardware (steel rail + hooks)
Compliance: RoHS, ISO 9001:2015 (Chronovex Noida QMS), food-grade compound where specified
HSN code: 8302 41 90 — GST 18%

📖 Where this is used

Engineered for: general factory door installation, warehouse hanger replacement, godown entrances, bulk retail installations.

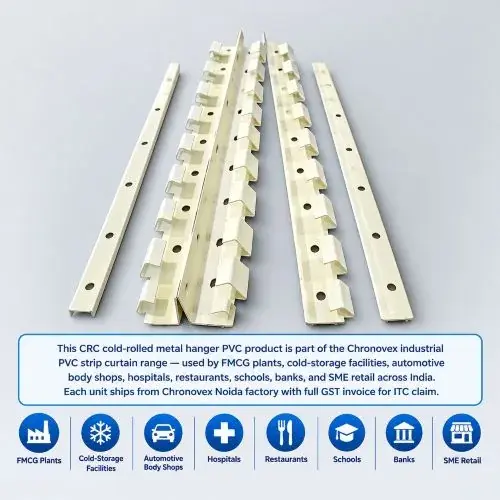

This CRC cold-rolled metal hanger PVC product is part of the Chronovex industrial PVC strip curtain range — used by FMCG plants, cold-storage facilities, automotive body shops, hospitals, restaurants, schools, banks, and SME retail across India. Each unit ships from Chronovex Noida factory with full GST invoice for ITC claim.

🔍 Why pick this from Chronovex?

🏭 Manufactured at our Noida factory — not re-branded imports. Quality control by ISO 9001:2015 certified QMS, with batch traceability for B2B audit.
📦 Same-day dispatch — stocked at Noida warehouse. Tier-1 cities (Delhi-NCR, Mumbai, Bangalore, Chennai, Hyderabad, Pune, Ahmedabad, Kolkata) typically receive in 24–48 hours via insured courier.
📄 Full GST tax invoice — HSN 8302 41 90, GST 18%. ITC-claim valid invoice with e-way bill auto-generated for shipments above ₹50,000.
🎓 Free pre-purchase consultation — our sales team helps you spec the right width, thickness, and overlap for your door size and traffic load. WhatsApp / email / phone support.
🔎 Bulk pricing — 5+ units bulk slab, 10+ units free pan-India shipping. AMC vendors and authorized resellers get dedicated pricing tier with 30–60 day terms (subject to credit approval).
🎯 Installation support — Tier-1 cities mein paid on-site installation available. Free PDF installation guide included with every order.

❓ Frequently asked questions

Sizing kaise decide karu (width, thickness, overlap)?

Door width pata hona zaroori hai. Standard rule: strip width = 200mm for doors below 6ft, 300mm/400mm for wider doors. Thickness: 2mm general purpose, 3mm heavy-duty (fork-lift / loading), 4mm extreme heavy-duty. 50% strip overlap recommended for full air-seal (each strip overlaps the next by half its width). Hamari sales team aapke door dimensions ke basis par exact spec recommend kar deti hai — WhatsApp ya email kar do.

Roll vs Complete Set — kya farak hai?

Roll bulk material hai — aap khud apne hardware (hanger rail, hooks) use karke install karte ho. Complete Set ready-to-install kit hai — pre-cut strips + SS304 hanger rail + anti-rust hardware sab box mein milta hai for the specified door size. Single door par install kar rahe ho to Complete Set lo (zyada convenient). Multiple doors ya custom dimensions ke liye Roll + Hanger Hardware separately lo (zyada cost-effective).

Installation kaise karte hain?

Door frame ke top par steel angle bracket / unistrut use karke hanger rail mount karte hain (4-6 M8 expansion bolts in concrete, or 4 self-tap screws in steel frame). Phir hooks / M-clamps se PVC strips ko rail par hang karte hain with 50% overlap. Time: 30–45 minutes for a 6ft door with 2-person crew. Free PDF installation guide har order ke saath milta hai. Tier-1 cities mein professional installation service available hai at ₹1,500–3,000 per door.

Kaunsa PVC variant choose karu?

Clear/Plain: general AC retention + dust barrier (warehouses, offices). Polar: cold rooms (-25°C tak flexible). Ribbed: fork-lift / loading bays (anti-scratch). Opaque: privacy + visual barrier (production lines). Amber: food zones (insect-repelling). Welding: fabrication shops (UV-filter, FR-grade). Magnetic: AC offices, clinics (zero-leak self-close). Sales team apne use-case batao to exact match recommend ho jayega.

Warranty kya hai aur replacement kaise milti hai?

PVC material par 6-month manufacturing defect warranty (cracks, tears, premature brittleness from compound defect). Steel hardware par 12-month rust/corrosion warranty. Mechanical damage (fork-lift impact, cutting, abrasion from heavy traffic) coverage ke bahar hai — normal wear-and-tear is expected. Claim ke liye original invoice + photo defect ka courier karna hota hai Noida HQ ko. Approved claim mein replacement 5–7 working days mein dispatch ho jaata hai.

Bulk pricing aur AMC vendor terms kya hain?

5+ units par bulk slab pricing, 10+ par free pan-India shipping, 25+ par custom branding (your logo embossed on hanger / packaging) ki facility hai with 3-week lead time. AMC vendors aur authorized Chronovex resellers ke liye dedicated pricing tier with 30–60 day payment terms (credit approval subject to). Sales team se contact karo through the product page form for actual bulk / vendor quote.

HSN code + GST invoice details?

HSN 8302 41 90 — GST 18%. Full tax invoice provided for ITC claim. B2B GST registered buyers ke liye e-way bill auto-generated for shipments above ₹50,000. MSME registered ke liye 30-day payment terms available on approval. Service partners aur AMC vendors ke liye separate vendor code allotted for consolidated monthly billing.

Frequently Asked Questions

Find answers to common questions about this product

HSN 7326 90 99 (Other articles of iron or steel — Chapter 73). GST 18%. Every invoice carries IRN, signed QR (e-invoice as per CBIC mandate for B2B above the prescribed turnover threshold), our GSTIN, and HSN — fully eligible for buyer-side GSTR-2B auto-reconciliation. Input Tax Credit (ITC) is admissible for registered B2B buyers using this hardware in the course of business.

12-month manufacturer warranty on zinc-plated finish and material defects from invoice date. Send service requests on WhatsApp +91 9997778202 with photo + invoice; we respond within one business day. For bulk-PO buyers we offer free replacement of any unit failing under warranty within 48 hours of report.
